equipment

MT-65H (66 kg) Power Source kW Honda GX 100U Gasoline max. output 2.1 kw (2.9 PS) Drum Plate Size (mm) L: 340 W: 285 Jumping Stroke (mm) 50-80 Impact Force kN (kgf) 12.7 (1,300)

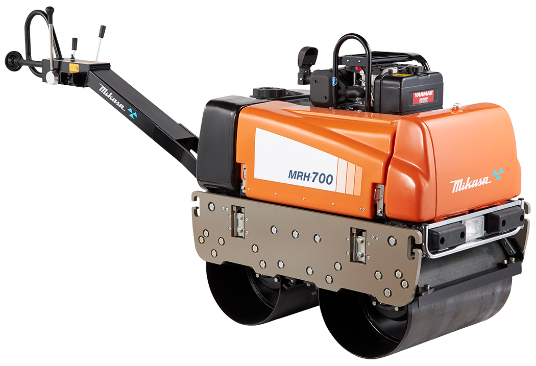

MRH-700DSCB (700 kg) Air cooled Power Source kW Yanmar L100N Diesel (electric start) max, output 7.4 (10.0) Drum Size (mm) Dia: 406 Width: 650 Vibrating frequency Hz (V/P.M.) 55 (3,300) Centrifugal force (max) kN (kgf) 23.5 (2.400)

Dimensions (LxWxH)                               640 X 520 X 525mm Input 10.4 A, 6.83 KVA, 50/60Hz, 380 V (3 phase) Output 48 A, 4 KVA, 200-240Hz 48 V (3 phase) Number of outlets 3

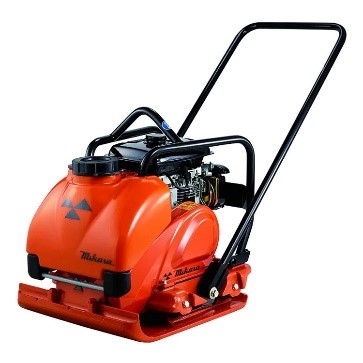

Power Source kW Honda GX160 gasoline max. output 3.6 (4.9) Plate Size (mm) W: 500 L1:525 Vibrating frequency Hz (V.P.M.) 100 (6000) Centrifugal force (max) kN (kgf) 15.0 (1530)

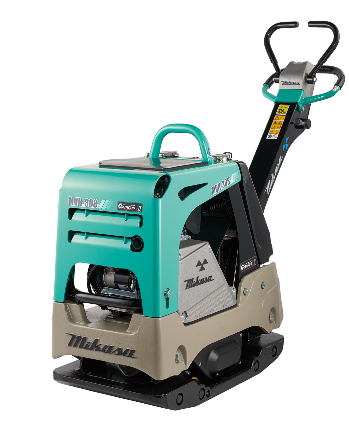

Power Source KW (PS) YANMAR L70N diesel (elctric start) max. output 4.9 (6.7) Plate Size (mm) W: 445 (595) L1:860 Vibrating frequency Hz (V.P.M.) 73 (4.400) Centrifugal force (max) kN (kgf) 45.0 (4,600)

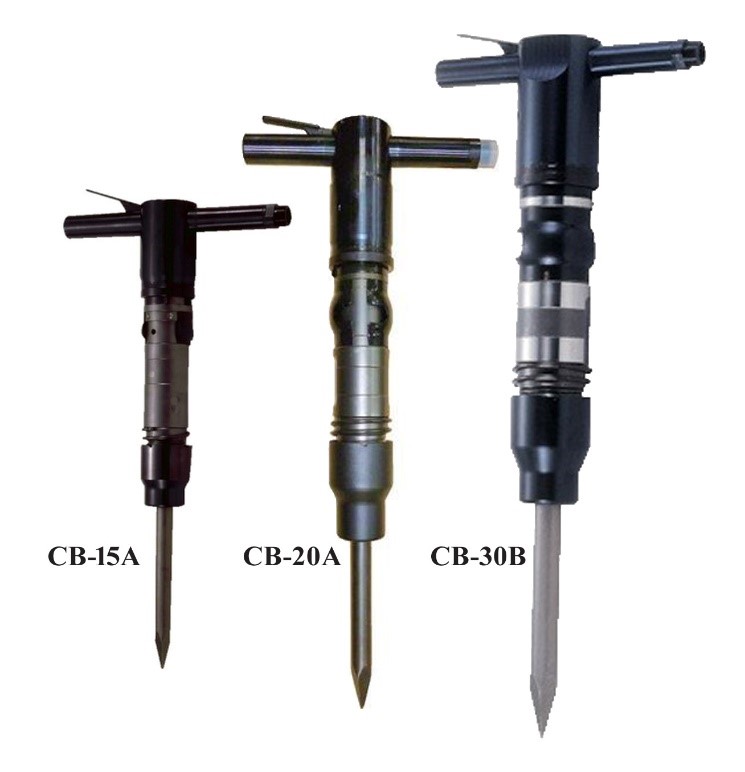

Durable and low reaction breakers for demolition of concrete, building asphaltic pavement, and for removal of slug in a furnace.

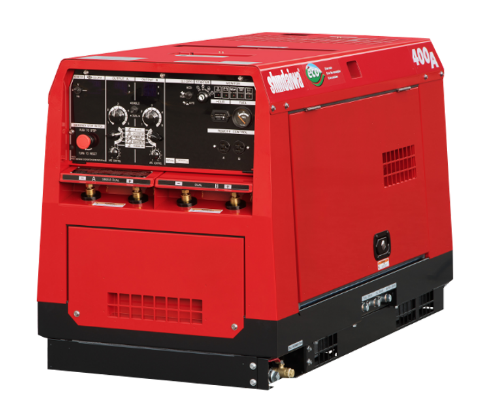

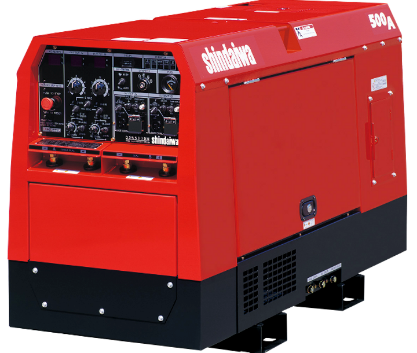

Welding Generator Specifications Model DGW500DM-GULF Duty Cycle 480A @ 60% (SINGLE) 230A @ 80% (DUAL) Rated Current 480A (SINGLE) / 230A (DUAL) AC Generator Rating 13.2 KVA (3 PHASE) 6.6 KVA (1 PHASE) 50 Hz Engine KUBOTA V150 S

Welding Generator Specifications Model DGW500DM-GULF Duty Cycle 480A @ 60% (SINGLE) 230A @ 80% (DUAL) Rated Current 480A (SINGLE) / 230A (DUAL) AC Generator Rating 13.2 KVA (3 PHASE) 6.6 KVA (1 PHASE) 50 Hz Engine KUBOTA V150 S

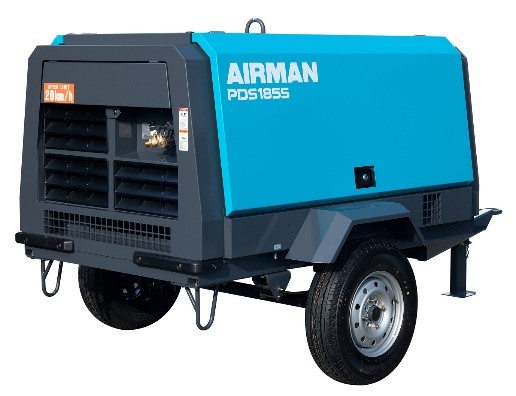

Compressor Specifications Model PDS 185 S-6C2 Type Rotary Twin ScrewSingle-Stage, Oil Cooled Free Air Delivery (m³/min) 5.2 Rated Operating Pressure(MPa | kgf/cm² | psi) 0.69 [7.0] [100] Compressor Oil Capacity (L) 15 Air Outlet Valve 3/4” × 2 ENGINE Make/Model YANMAR 4TNV88-BXDHK

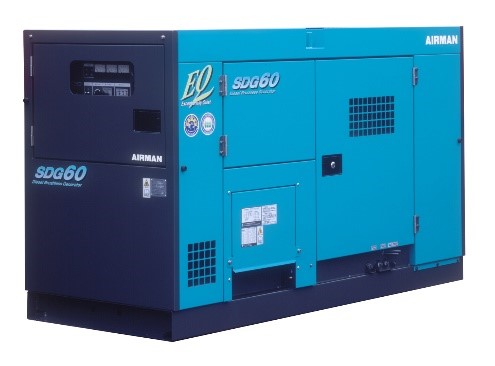

Generator Specifications Model SDG60S-3A6 Type Dual Voltage Frequency (Hz) 50/60 Prime Output (kVA) 50/60 Standby Output (kVA) 55/66 Voltage (V) 200/400 | 20/440 Power Factor (%) 3-phase 0.8 (lagging)Single-phase 1.0 ENGINE Make/Model ISUZU BB-4BGIT
